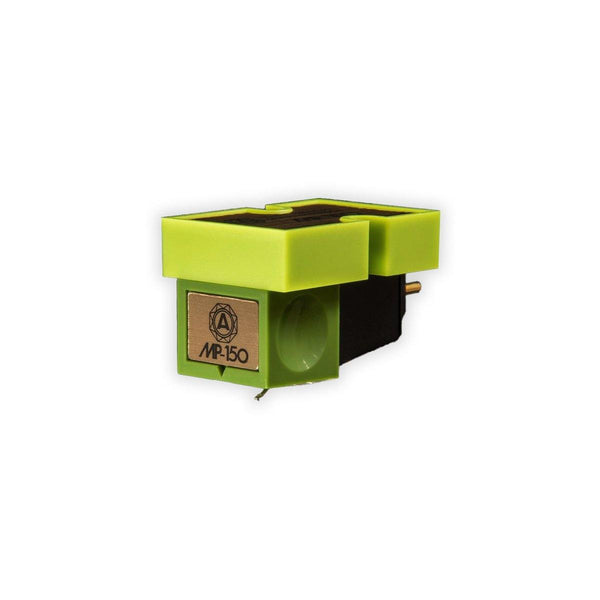

Nagaoka MP-150 MM Cartridge

$499.00

The Made in Japan MP-150 record player cartridge from Nagaoka is an absolute delight, offering unmatched dynamic contrast and great fidelity across the audio spectrum with superb clarity in the lows and sweetness in the highs.



LOW STOCK | DON'T MISS OUT FOR XMAS



Title:

In stock

Cartridge

Nagaoka



Nagaoka MP-150 Moving Magnet Turntable Cartridge

The Nagaoka MP-150 phonograph cartridge from Japan offers superior clarity, detail and dynamic contrast with a fine solid bass, superb fluidity across the frequency spectrum, and sweet highs.





Key Features

  • Superfine polished Elliptical Diamond Stylus tip

  • Powerful Samarium Cobalt Magnet

  • Low mass, hardened, tapered Aluminum Alloy Cantilever

  • Reinforced Carbon Fiber pole shoe

  • Anti Ferro-Magnetic Permalloy shielding casing





Technical Stuff

Type: Moving magnet (Permalloy)
Cantilever: Hardened tapered aluminum alloy
Stylus type:
Superfine elliptical diamond
Weight: 6.5 g
Output Voltage @ 1kHz, 5cm/sec: 4.5mV
Frequency response: 20Hz-20kHz
Channel balance @ 1kHz: > 1.5dB
Channel separation @ 1kHz: > 24dB
Recommended loading: 47k ohms
Dynamic compliance: 6.0 x 10-6 cm/dyne
Static compliance: 18 x 10-6 cm/dyne
Tracking force range: 1.5 - 2.0 g
Break-in period: 30 hours
Stylus replacement: Nagaoka JN-P150



For More Information

Visit the manufacturer's website.
