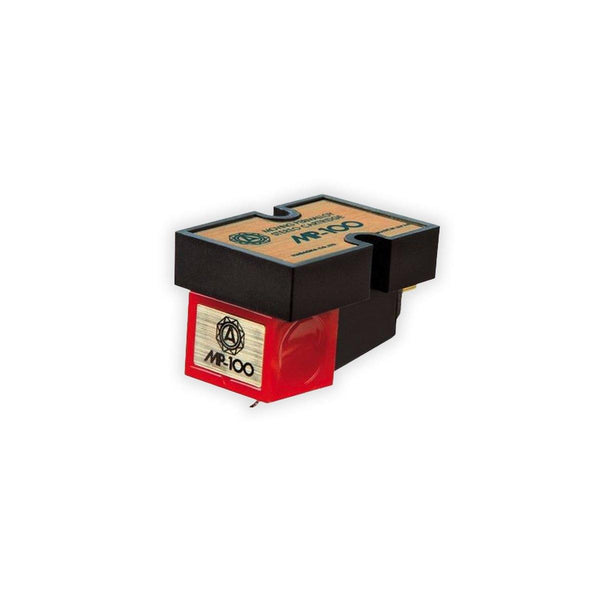

Nagaoka MP-100 MM Cartridge


The Nagaoka MP 100 is an amazing entry point cartridge in the world of high resolution analogue audio. Offering a cost effective solution with high performance and clear sound reproduction.





In stock




Nagaoka MP-100 Moving Magnet Turntable Cartridge

The Nagaoka MP-100 phonograph cartridge from Japan offers musical clarity and expression beyond its price and competitors.  It's a splendid upward start toward long term musical enjoyment of one treasured vinyl record collection.

The Made in Japan MP-100 record player cartridge utilises a half-inch system with a conical diamond on a lightweight aluminium cantilever.



Key Features

  • Superfine polished conical stylus

  • Powerful Samarium Cobalt Magnet

  • Lightweight Aluminum Alloy Cantilever

  • Reinforced Carbon Fiber pole shoe

  • Anti Ferro-Magnetic permalloy shield casing



Technical Stuff

Type: Moving magnet (Permalloy)
Cantilever: Lightweight aluminum alloy
Stylus type:
Conical diamond with .0006 inch radius
Weight: 6.5 g
Output Voltage @ 1kHz, 5cm/sec: 5mV
Frequency response: 20Hz-20kHz
Channel balance @ 1kHz: > 2dB
Channel separation @ 1kHz: > 22dB
Recommended loading: 47k ohms
Dynamic compliance: 5.5 x 10-6 cm/dyne
Static compliance: 18 x 10-6 cm/dyne
Tracking force range: 1.5 - 2.3 g
Break-in period: 30 hours
Stylus replacement: Nagaoka JN-P100
